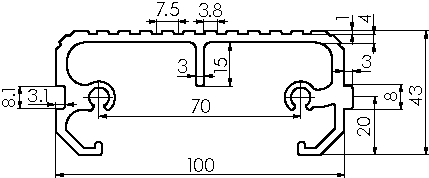

Tread Profile 43x100, natural

SP0610N6000

Length 6000mm SP0610N6000

Register now to view prices and order products or alternatively inquire without a customer account.

Application

For manufacturing steps.

Scope of delivery

The delivery takes place as a 6 meter profile.

Length	6000mm
Width	100mm
Height	43mm
Weight	15.1kg
Area	9.270cm²
Ix	15.370cm⁴
Iy	130.660cm⁴
Wx	5.569cm³
Wy	25.046cm³
eClass Id	35070290
Customs tariff number	76042990

DWF DWFSP061.DWF (10.32 KiB)

DWG DWGSP061.DWG (141.95 KiB)

DXF DXFSP061.dxf (37.54 KiB)

IGS SP061.igs (269.78 KiB)

STP SP061.stp (166.09 KiB)

Load F =	N
Profile Length l =	mm

Gravity g =	9.81 m/s²
Modulus of elasticity E =	70 kN/mm²

Ix =	15.370 cm⁴
Iy =	130.660 cm⁴
m/Meter =	2.512 kg
f =	x mm

f1:	Bending with self-weight
f2:	Bending through influencing force [N]
f3:	Resulting deflection

On two stilts, distributed load

	f1	f2	f3
about the x-axis	0	0	0
about the y-axis	0	0	0

f =	5 • F • l³
	384 • E • I

Fixed one-sided, pointloading

	f1	f2	f3
about the x-axis	0	0	0
about the y-axis	0	0	0

f =	F • l³
	3 • E • I

On two stilts, pointloading

	f1	f2	f3
about the x-axis	0	0	0
about the y-axis	0	0	0

f =	F • l³
	48 • E • I

Fixed two-sided, pointloading

	f1	f2	f3
about the x-axis	0	0	0
about the y-axis	0	0	0

f =	F • l³
	192 • E • I
