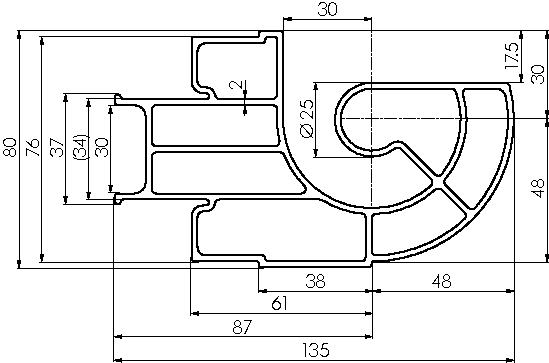

Supple Profile, outside
SX3310N6000
Length 6000mm SX3310N6000
Application
Profiles Laser Technology
For the design and construction of double-walled laser protection cabins, or laser enclosures (Nd-YAG lasers) in segmental construction.
The profiles can also be used for any other type of partitioning and are characterised by simple and quick assembly assembly without further processing.
Material:
Aluminium, natural anodised
Scope of delivery
The delivery takes place as a 6 metre profile.
| Length | 6000mm |
| Width | 135mm |
| Height | 80mm |
| Weight | 23.3kg |
| Area | 14.310cm2 |
| Ix | 67.070cm4 |
| Iy | 206.450cm4 |
| Wx | 15.540cm3 |
| Wy | 30.210cm3 |
| N | |
| mm | |
| Gravity g = | 9.81 m/s2 |
| Modulus of elasticity E = | 70 kN/mm2 |
| Ix = | 67.070 cm4 |
| Iy = | 206.450 cm4 |
| m/Meter = | 3.885 kg |
| f = | x mm |
| f1: | Bending with self-weight |
| f2: | Bending through influencing force [N] |
| f3: | Resulting deflection |
On two stilts, distributed load
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | 5 • F • l3 |
| 384 • E • I |
Fixed one-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 3 • E • I |
On two stilts, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 48 • E • I |
Fixed two-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 192 • E • I |
