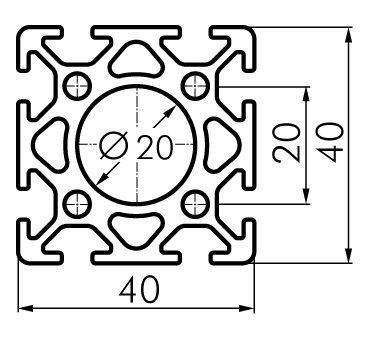

Profile 40x40 mini, natural

SP2400N6000

Application

Universal applications, for higher loads and weight-optimised designs of all types. Suitable for compressed air line.

Scope of delivery

The delivery takes place as a 6 meter profile.
Length 6000mm
Width 40mm
Height 40mm
Weight 10.9kg
Area 6.690cm2
Ix 10.350cm4
Iy 10.350cm4
Wx 5.180cm3
Wy 5.180cm3
eClass Id 35070290
Customs tariff number 76042990
N
mm

Gravity g = 9.81 m/s2
Modulus of elasticity E = 70 kN/mm2
Ix = 10.350 cm4
Iy = 10.350 cm4
m/Meter = 1.813 kg
f = x mm
f1: Bending with self-weight
f2: Bending through influencing force [N]
f3: Resulting deflection
On two stilts, distributed load
  f1 f2 f3
about the x-axis 0 0 0
about the y-axis 0 0 0
f =  5 • F • l3
384 • E • I
Fixed one-sided, pointloading
  f1 f2 f3
about the x-axis 0 0 0
about the y-axis 0 0 0
f =  F • l3
3 • E • I
On two stilts, pointloading
  f1 f2 f3
about the x-axis 0 0 0
about the y-axis 0 0 0
f =  F • l3
48 • E • I
Fixed two-sided, pointloading
  f1 f2 f3
about the x-axis 0 0 0
about the y-axis 0 0 0
f =  F • l3
192 • E • I
