Profile 20x20 mini, black
SP2200S6000
Length 6000mm SP2200S6000
Application
Universal applications for weight optimised designs of all types. Suitable for compressed air lines.
Scope of delivery
The delivery takes place as a 6 metre profile.

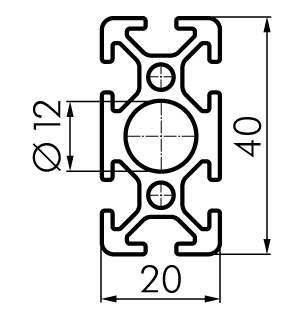

| Length | 6000mm |
| Width | 20mm |
| Height | 40mm |
| Weight | 5.7kg |
| Area | 3.510cm2 |
| Ix | 5.100cm4 |
| Iy | 1.480cm4 |
| Wx | 2.550cm3 |
| Wy | 1.480cm3 |
| eClass Id | 35070290 |
| Customs tariff number | 76042990 |
| N | |
| mm | |
| Gravity g = | 9.81 m/s2 |
| Modulus of elasticity E = | 70 kN/mm2 |
| Ix = | 5.100 cm4 |
| Iy = | 1.480 cm4 |
| m/Meter = | 0.951 kg |
| f = | x mm |
| f1: | Bending with self-weight |
| f2: | Bending through influencing force [N] |
| f3: | Resulting deflection |
On two stilts, distributed load
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | 5 • F • l3 |
| 384 • E • I |
Fixed one-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 3 • E • I |
On two stilts, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 48 • E • I |
Fixed two-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 192 • E • I |
