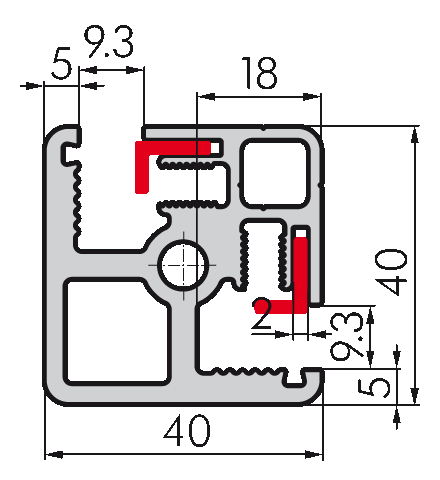

Clamp Profile 40 90°, with strips
SP7420N6000
Length 6000mm SP7420N6000
Application
Holds sheet elements to a max thickness of 9mm. Used in the construction of protective cladding, sliding or swing doors etc. When clamped the sheet elements become tensioned to give the frame considerable strength.
Scope of delivery
The delivery takes place as a 6 meter profile.
| Length | 6000mm |
| Width | 40mm |
| Height | 40mm |
| Weight | 12.1kg |
| Area | 7.400cm2 |
| Ix | 11.030cm4 |
| Iy | 11.030cm4 |
| Wx | 5.490cm3 |
| Wy | 5.490cm3 |
| eClass Id | 35070290 |
| Customs tariff number | 76042990 |
| N | |
| mm | |
| Gravity g = | 9.81 m/s2 |
| Modulus of elasticity E = | 70 kN/mm2 |
| Ix = | 11.030 cm4 |
| Iy = | 11.030 cm4 |
| m/Meter = | 2.010 kg |
| f = | x mm |
| f1: | Bending with self-weight |
| f2: | Bending through influencing force [N] |
| f3: | Resulting deflection |
On two stilts, distributed load
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | 5 • F • l3 |
| 384 • E • I |
Fixed one-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 3 • E • I |
On two stilts, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 48 • E • I |
Fixed two-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 192 • E • I |
