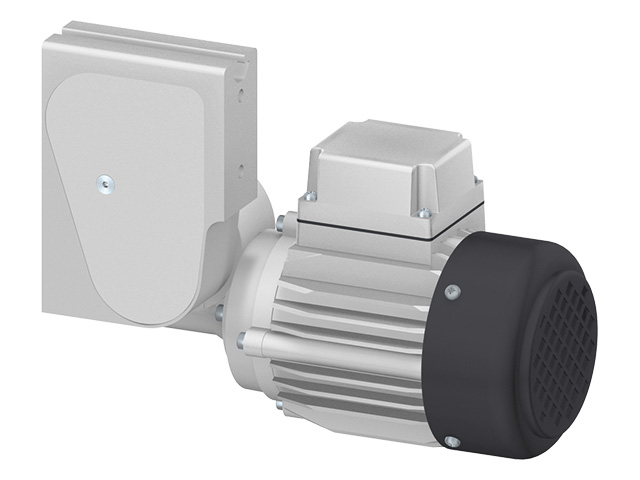

Motor With Gearbox TD (90W)

ST0002Z

Register now to view prices and order products or alternatively inquire without a customer account.

Request item

Application

Drive motor for conveyor systems.

Technical Data:
- 3 phase motor with gearbox.
- output: 90W (ST0002Z), 180W (ST0004Z)
- speed: 1350rpm
- ratio: 50:1 (others on request)
- protection: IP 44
- torque: 13Nm (ST0002Z), 32Nm (ST0004Z)

Weight	5.0kg
eClass Id	36659090

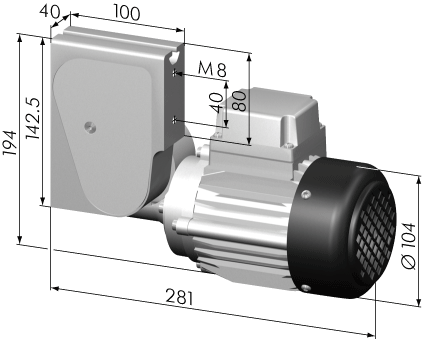

DWF DWFST0002Z.DWF (37.14 KiB)

Download
