Linear Actuator 80/90
SL5300N
Application
Due to its unique roller guided design, the internally guided actuator 80/90 can be mounted and operated at any angle. This unit is maintenance-free due to its engineered plastic rollers. A 50mm wide AT10 timing belt is used in combination with the pulley assembly 80/90 to drive the unit and the timing belt also acts as a cover.
Technical Data:
- max. operational speed: 8m/s
- maintenance-free
Standard delivery:
- complete linear actuator including track profile and carriage
- pulley assembly with customer specific motor connection on request
Optional:
- proximity and end of stroke switches, end stops, motor coupling, motors, energy cable
Carriage options:
- the carriage is produced with three different lenghths
- carriages with special lengths are only available on request
Technical Data:
- max. operational speed: 8m/s
- maintenance-free
Standard delivery:
- complete linear actuator including track profile and carriage
- pulley assembly with customer specific motor connection on request
Optional:
- proximity and end of stroke switches, end stops, motor coupling, motors, energy cable
Carriage options:
- the carriage is produced with three different lenghths
- carriages with special lengths are only available on request
Scope of delivery
Complete inclusive track profile, carriage and pulley assembly with customer specific motor connection on request.
Optional:
• proximity and end of stroke swichtes
• end stops
• motor coupling
• motor
• energy cable

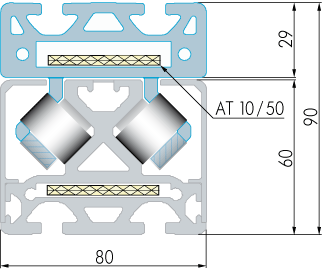

| Width | 80mm |
| Height | 90mm |
| Ix | 41.640cm4 |
| Iy | 47.920cm4 |
| Wx | 10.980cm3 |
| Wy | 11.980cm3 |
