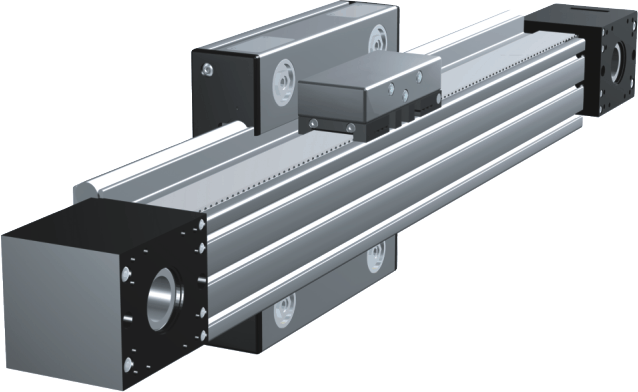

Linear Actuator 25-120x120/320/80x120e
SL5570N
Application
Standard Delivery:
complete linear actuator inclusive track profile and carriage, pulley assembly with customer-specific motor connection.
Optional:
proximity and end of stroke switches, end stops, motor coupling, motors, energy cable
Carriage Options:
Carriage lengths of up to 700mm are available. For high load systems it may be advisable to add further rollers. By having a combination of guidance and flat faced rollers the permissible actuator loading values may be increased. For long period of continious operation it is advisable to use our external lubrication system type E.
complete linear actuator inclusive track profile and carriage, pulley assembly with customer-specific motor connection.
Optional:
proximity and end of stroke switches, end stops, motor coupling, motors, energy cable
Carriage Options:
Carriage lengths of up to 700mm are available. For high load systems it may be advisable to add further rollers. By having a combination of guidance and flat faced rollers the permissible actuator loading values may be increased. For long period of continious operation it is advisable to use our external lubrication system type E.
Scope of delivery
Complete linear axis including guide profile, carriage, wiper and lubrication system, deflection with customised drive shaft connection.
| Weight | 15.4kg |
| Area | 56.960cm2 |
| Ix | 1,104.090cm4 |
| Iy | 873.480cm4 |
| Wx | 130.660cm3 |
| Wy | 129.120cm3 |
| N | |
| mm | |
| Gravity g = | 9.81 m/s2 |
| Modulus of elasticity E = | 70 kN/mm2 |
| Ix = | 1,104.090 cm4 |
| Iy = | 873.480 cm4 |
| m/Meter = | 15.436 kg |
| f = | x mm |
| f1: | Bending with self-weight |
| f2: | Bending through influencing force [N] |
| f3: | Resulting deflection |
On two stilts, distributed load
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | 5 • F • l3 |
| 384 • E • I |
Fixed one-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 3 • E • I |
On two stilts, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 48 • E • I |
Fixed two-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 192 • E • I |
