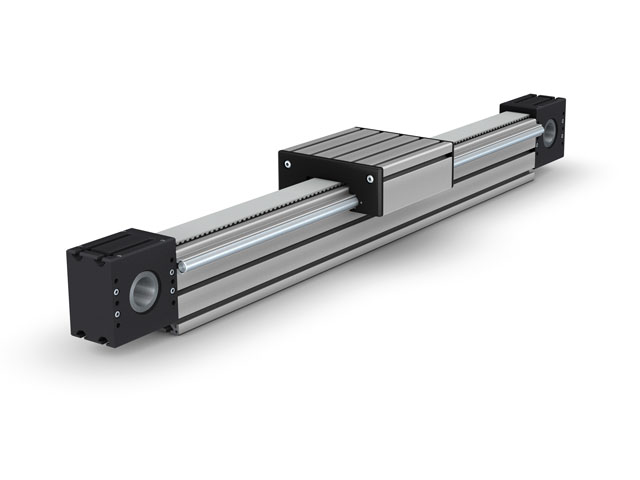

Linear Actuator 16-80x120-8N/200sl/80x80
SL6012N
Application
Standard Delivery:
Complete linear actuator inclusive track profile and carriage, pulley assembly with customer-specific motor connection.
Technical Data:
- max. operating speed. 8m/s
- use only with wiper and lubrication system
- lubrication intervals according to loading
Optional:
proximity and end of stroke switches, end stops, motor coupling, motors, energy cable
Carriage Options:
Carriage lengths of up to 2.3m are available. For high load systems it may be advisable to add further rollers. By having a combination of guidance and flat faced rollers the permissible actuator loading values may be increased. For long period of continious operation it is advisable to use our external lubrication system type E.
Complete linear actuator inclusive track profile and carriage, pulley assembly with customer-specific motor connection.
Technical Data:
- max. operating speed. 8m/s
- use only with wiper and lubrication system
- lubrication intervals according to loading
Optional:
proximity and end of stroke switches, end stops, motor coupling, motors, energy cable
Carriage Options:
Carriage lengths of up to 2.3m are available. For high load systems it may be advisable to add further rollers. By having a combination of guidance and flat faced rollers the permissible actuator loading values may be increased. For long period of continious operation it is advisable to use our external lubrication system type E.
Scope of delivery
Complete linear axis including guide profile, carriage, wiper and lubrication system, deflection with customised drive shaft connection.
| Weight | 11.0kg |
| Area | 40.600cm2 |
| Ix | 311.190cm4 |
| Iy | 570.070cm4 |
| Wx | 59.270cm3 |
| Wy | 88.800cm3 |
| N | |
| mm | |
| Gravity g = | 9.81 m/s2 |
| Modulus of elasticity E = | 70 kN/mm2 |
| Ix = | 311.190 cm4 |
| Iy = | 570.070 cm4 |
| m/Meter = | 11.003 kg |
| f = | x mm |
| f1: | Bending with self-weight |
| f2: | Bending through influencing force [N] |
| f3: | Resulting deflection |
On two stilts, distributed load
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | 5 • F • l3 |
| 384 • E • I |
Fixed one-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 3 • E • I |
On two stilts, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 48 • E • I |
Fixed two-sided, pointloading
| f1 | f2 | f3 | |
|---|---|---|---|
| about the x-axis | 0 | 0 | 0 |
| about the y-axis | 0 | 0 | 0 |
| f = | F • l3 |
| 192 • E • I |
