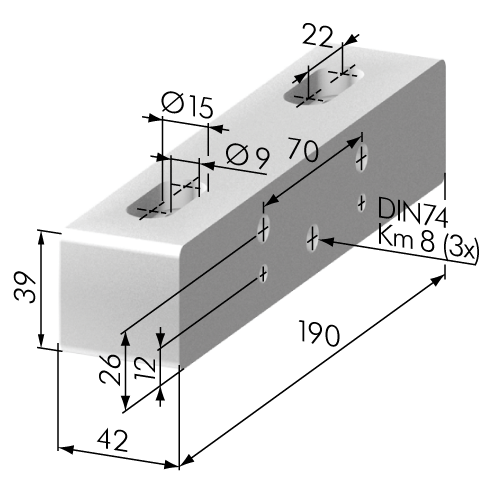

Fixing Block 22, natural

SL0195N

Register now to view prices and order products or alternatively inquire without a customer account.

Application

For the tensioning and attachment of the timing belts to a carriage.

Material:
- aluminium, natural anodised

Length	42mm
Width	190mm
Height	39mm
Weight	0.8kg
eClass Id	23309090

DWF DWFSL0195N.DWF (4.11 KiB)

IGS SL0195N.igs (168.80 KiB)

STP SL0195N.stp (80.25 KiB)

Accessories

Timing Belt Tensioner 22, external

Timing Belt Tensioner 22, external
