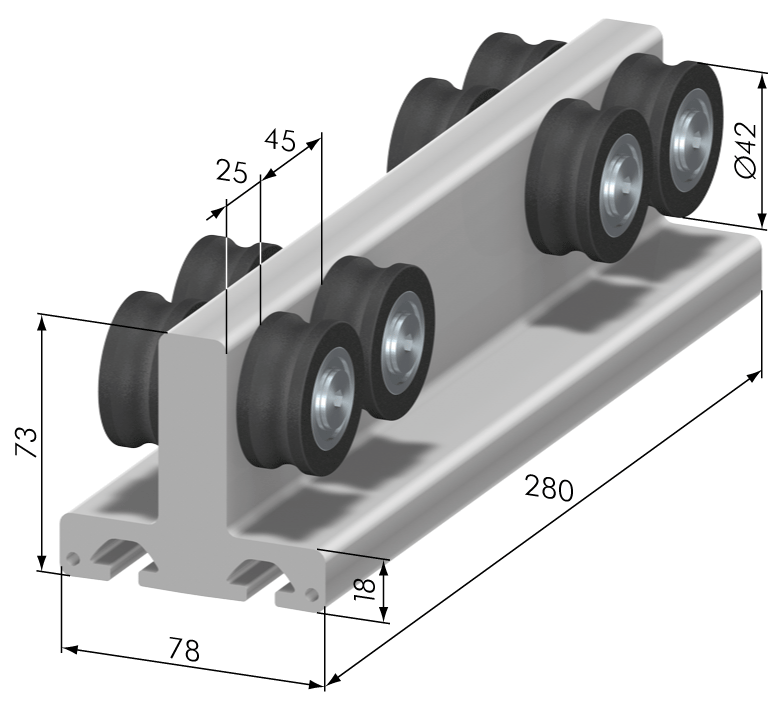

Double Carriage C80/100 280/8

SL9001N

Register now to view prices and order products or alternatively inquire without a customer account.

Request item

Application

For the creation of sliding doors and other linear applications.

Material:
- profile: aluminium, natural anodised
- roller: POM

Technical Data:
- excentric adjustment: ±0,9mm

Length	280mm
Width	78mm
Height	73mm
Weight	1.0kg
eClass Id	23309090

DWF DWFSL9001N.DWF (26.94 KiB)

Download

IGS SL9001N.igs (471.42 KiB)

Download

STP SL9001N.stp (158.81 KiB)

Download
