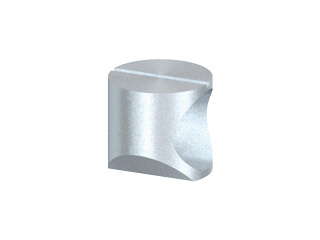

Universal Fastener 30
SV1802V
Application
Standard fastener for universal applications. The t-nut can be swiveled into the t-slot at any point of the profile and is held in position by a spring-loaded ball.
Material:
- steel, zinc-plated
Assembly:
- Insert t-nut into the t-slot of profile

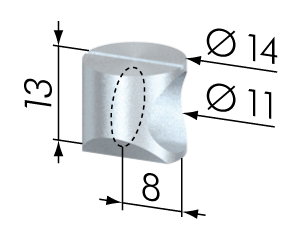

- bore hole for the fastener housing: Ø14mm, 15mm from the profile end, 12.7mm deep
Material:
- steel, zinc-plated
Assembly:
- Insert t-nut into the t-slot of profile
- bore hole for the fastener housing: Ø14mm, 15mm from the profile end, 12.7mm deep
| Weight | 0.0kg |
| eClass Id | 21020701 |
