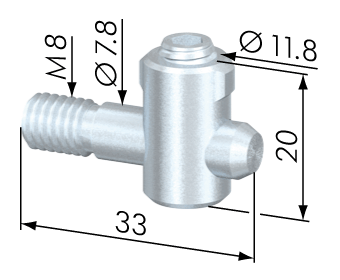

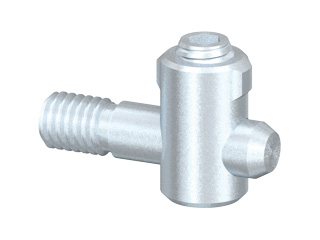

Central Fastener G
SV1071V
Application
Butt fastener. Used for joining two profiles end to end or for frontal attaching of plates. The anchor is screwed into the opposing profile or plate.
Material:
- steel, zinc-plated
Assembly:
- bore hole for the barrel housing: Ø12mm, 15mm from profile end, 30mm deep
- bore for center hole on end of profile for anchor: Ø8.5mm, 25mm deep
- Tap center hole of mating profile with an M8 thread to orient diveted portion of fastener so that it is facing the direction as the barrel housing.
Material:
- steel, zinc-plated
Assembly:
- bore hole for the barrel housing: Ø12mm, 15mm from profile end, 30mm deep
- bore for center hole on end of profile for anchor: Ø8.5mm, 25mm deep
- Tap center hole of mating profile with an M8 thread to orient diveted portion of fastener so that it is facing the direction as the barrel housing.
| Weight | 0.0kg |
| eClass Id | 21020701 |
