Plastic corner 30 90°

SV1661V

Register now to view prices and order products or alternatively inquire without a customer account.

Request item

Application

For 90° mitred joint, cut angle is 45°.

Material:
fastener: steel, zinc-plated
plastic corner: POM, black

Assembly:

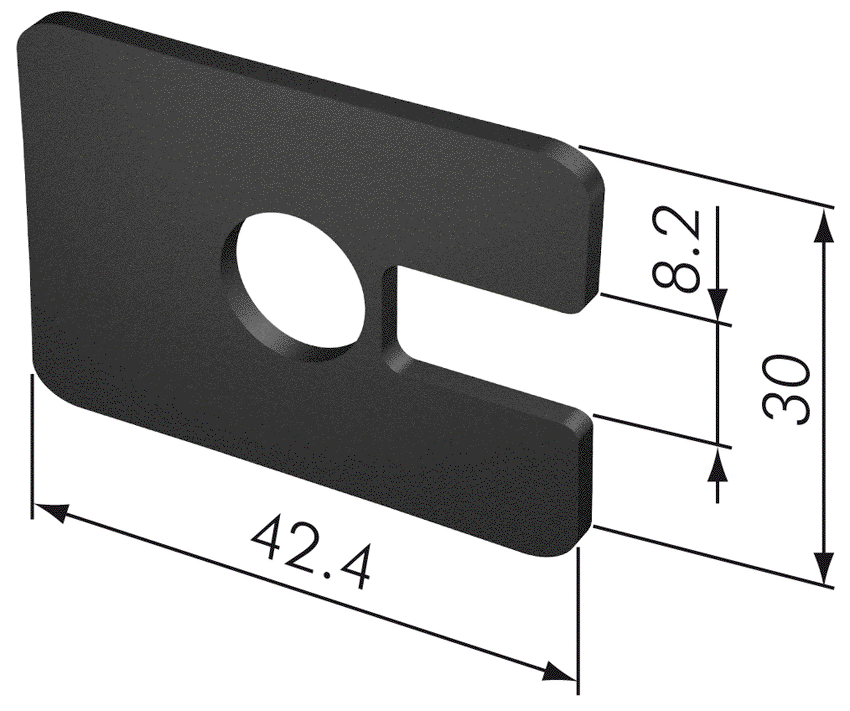

- bore hole for barrel housing: Ø8,5mm, 33,5mm from profile end, 25mm deep
- bore for center hole on end of profile for anchor (2x): Ø8mm, 20mm deep

IGS SV1661V.igs (74.63 KiB)

Download

STP SV1661V.stp (44.31 KiB)
