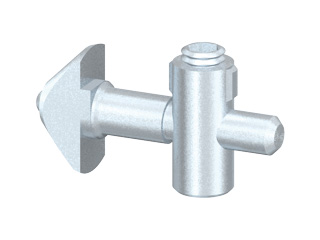

Central Fastener 30 EL
SV1601V
Application
All-purpose universal fastener.The twist-in anchor, with an anti-twist feature, can be fixed in the profile t-slot at any point. The anchor is held in position by a spring-loaded ball in the opposing profile t-slot.
Material:
steel, zinc-plated
Assembly:

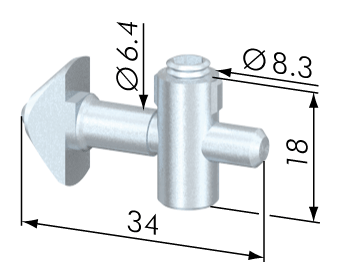

- bore hole for the barrel housing: Ø8.5mm, 15mm from profile end, 25mm deep
- bore for center hole is not required
Material:
steel, zinc-plated
Assembly:
- bore hole for the barrel housing: Ø8.5mm, 15mm from profile end, 25mm deep
- bore for center hole is not required
| Weight | 0.0kg |
| eClass Id | 21020701 |
