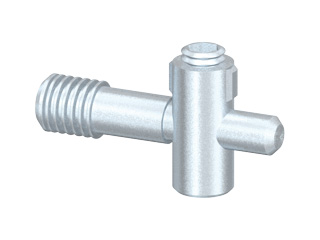

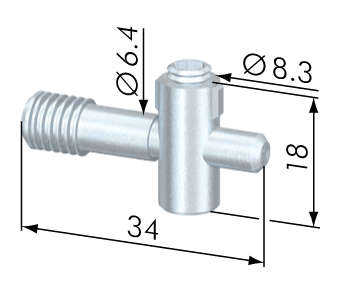

Central Fastener 30 G
SV1072V
Application
Butt fastener. Used for joining two profiles end to end or for frontal attaching of plates. The anchor is screwed into the opposing profile or plate.
Material:
steel, zinc-plated
Assembly:
- Tap center hole of mating profile with an M8 thread to orient diveted portion of fastener so that it is facing the direction as the barrel housing.
Material:
steel, zinc-plated
Assembly:
- Tap center hole of mating profile with an M8 thread to orient diveted portion of fastener so that it is facing the direction as the barrel housing.
