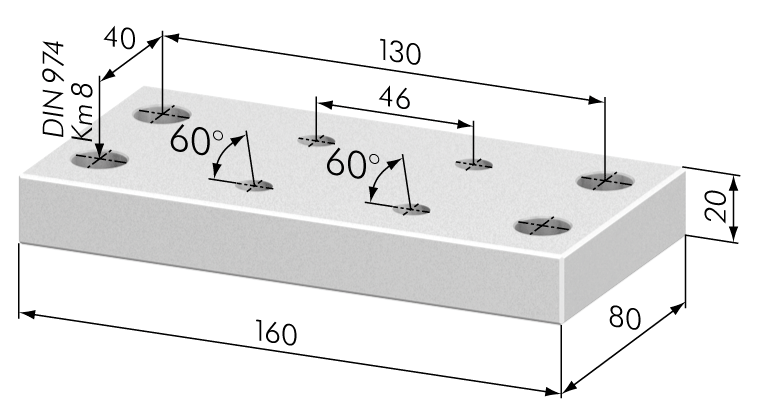

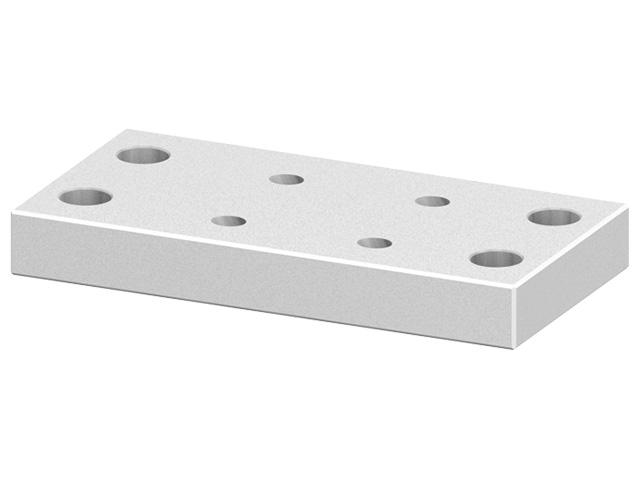

Attachment Plate 60° 80x160

SV5016N

Register now to view prices and order products or alternatively inquire without a customer account.

Request item

Application

For bracing two profiles. Achieved by screwing either two 45° plates or one 30° and one 60° plate to 80x80 profiles.

Material:
- aluminium, natural anodised

Length	160mm
Width	80mm
Height	20mm
Weight	0.6kg
eClass Id	21020701

DWF DWFSV5016N.DWF (6.64 KiB)

Download

IGS SV5016N.igs (103.06 KiB)

Download

STP SV5016N.stp (33.18 KiB)

Download

Accessories

Security Washer D8

Cap Head Screw M8x35

Cap Head Screw M8x45
