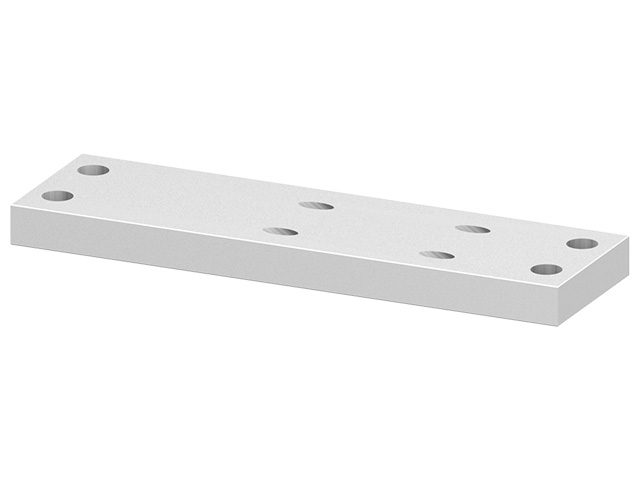

Attachment Plate 30° 80x280

SV5013N

Register now to view prices and order products or alternatively inquire without a customer account.

Request item

Application

For bracing two profiles. Achieved by screwing either two 45° plates or one 30° and one 60° plate to 80x80 profiles.

Material:
- aluminium, natural anodised

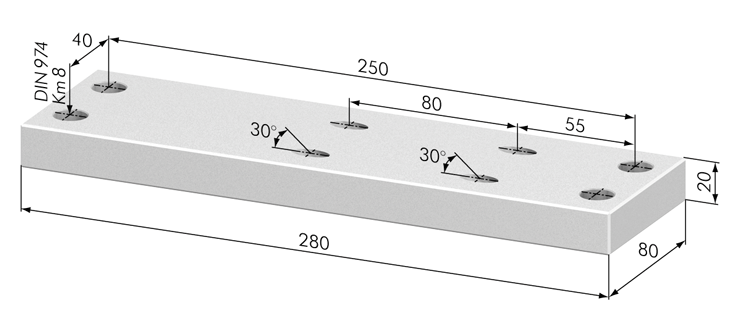

Length	280mm
Width	80mm
Height	20mm
Weight	1.1kg
eClass Id	21020701

DWF DWFSV5013N.DWF (5.84 KiB)

Download

IGS SV5013N.igs (113.87 KiB)

Download

STP SV5013N.stp (34.80 KiB)

Download

Accessories

Security Washer D8

Cap Head Screw M8x35

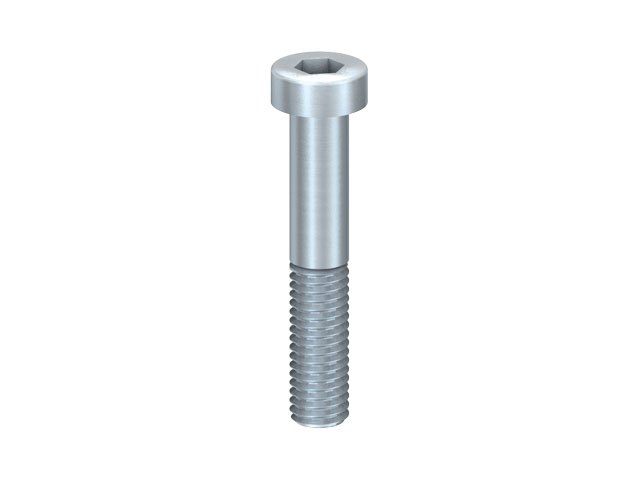

Cap Head Screw M8x45
