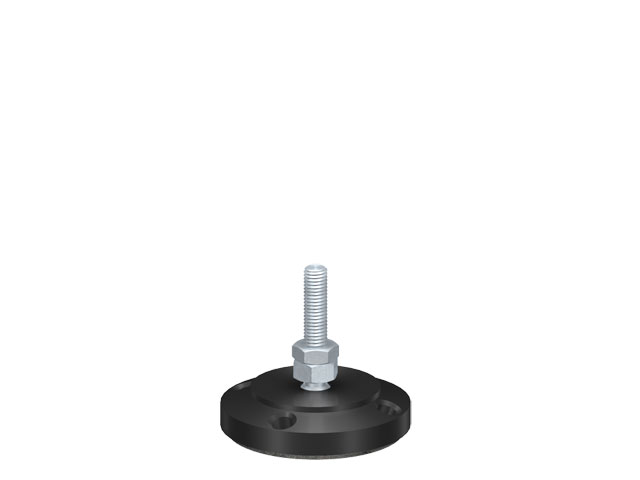

Adjustable Foot D79 M10 PSDB/L71

SF0435S

Register now to view prices and order products or alternatively inquire without a customer account.

Request item

Application

Height adjustable foot for leveling machines and structures. Any tipping is compensated by a ball and a socket.
Incl. anti-vibration pad.

- max. load: 750kg

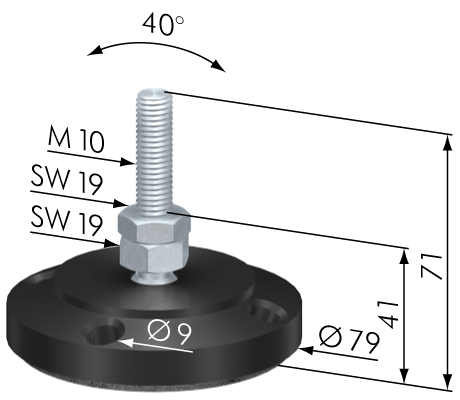

Length	79mm
Width	79mm
Height	71mm
Weight	0.2kg
eClass Id	36659090

DWF DWFSF0435S.DWF (20.49 KiB)

Download

IGS SF0435S.igs (217.01 KiB)

Download

STP SF0435S.stp (147.61 KiB)

Download

Accessories

Fixing Set adjustable feet

Alternatives

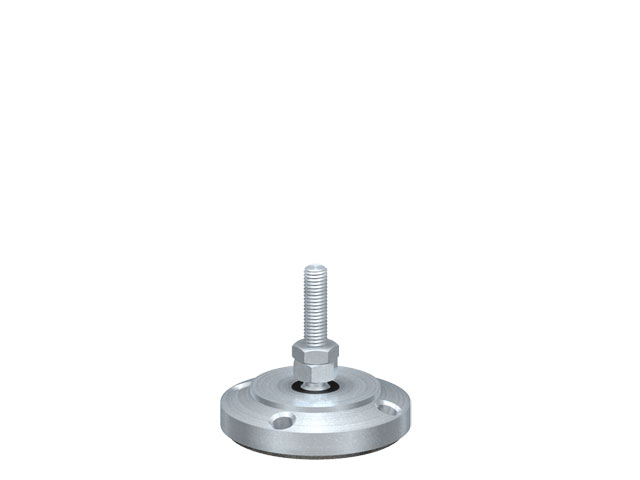

Adjustable Foot D79 M10 SVDB/L71
